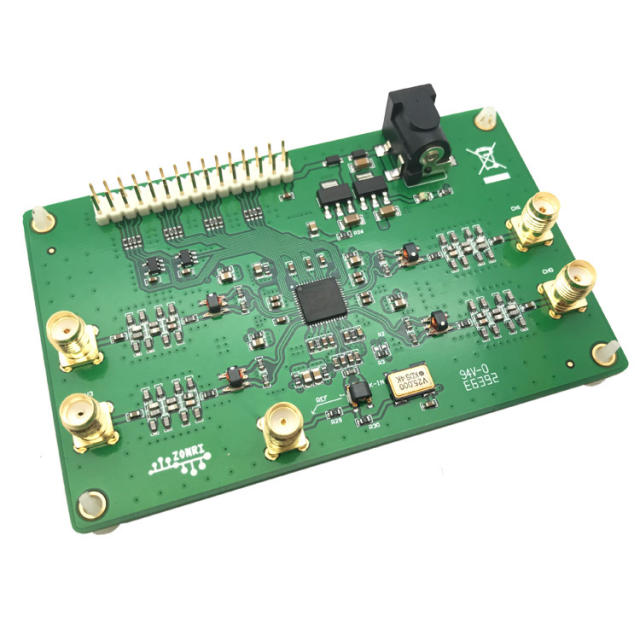

AD9959 4-channel high-speed DDS signal generation module generator RF signal source 200MHz balun output

Name: AD9959 4-channel high-speed DDS signal generation module generator RF signal source 200MHz balun output
Brand: MicroHello
SKU: AD9959-001
Price: 84 USD
Availability: InStock

SKU: AD9959-001

0.0 (0)

0 Sold

$84.00 ~~$129.00~~

AD9959 4-channel high-speed DDS signal generation module generator RF signal source 200MHz balun output

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

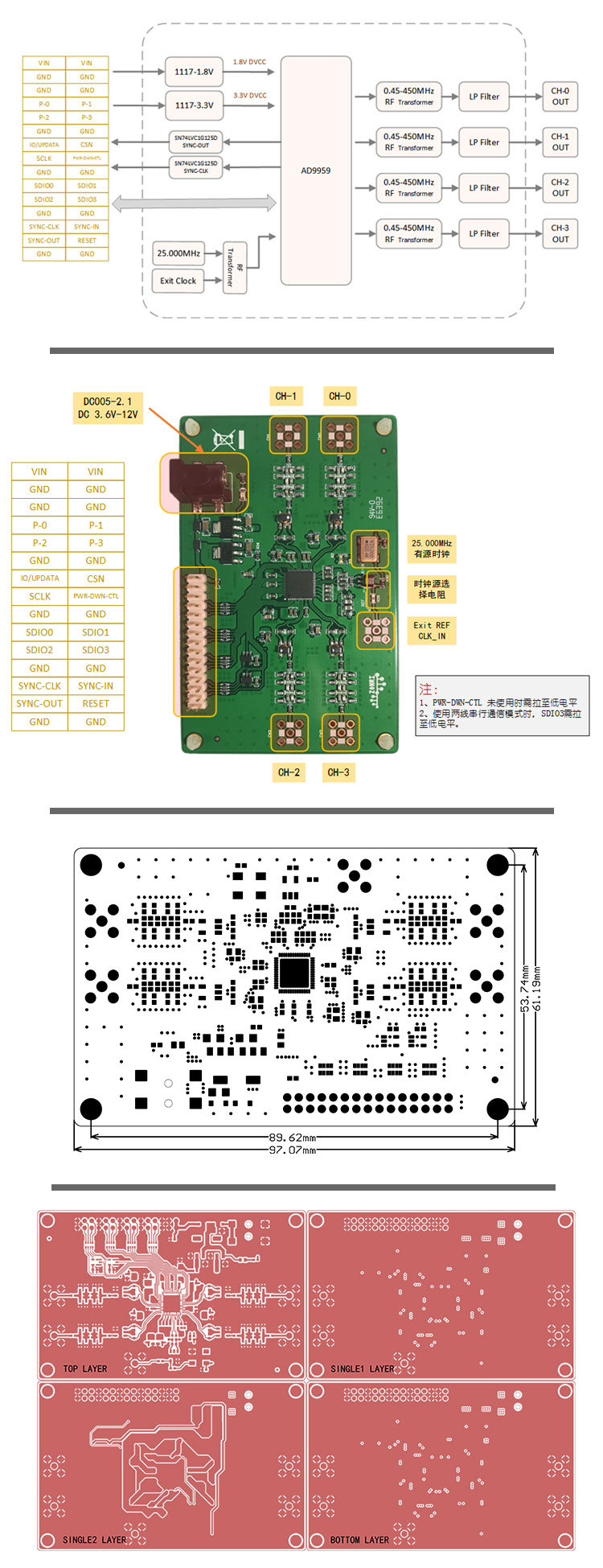

The complete AD9959 application circuit module has a maximum frequency of 500MHz.
Onboard 3.3V/1.8V LDO, wide power input range (3.6V-12V).
The onboard clock is input to the balun filter, and the differential clock is input to the AD9959.
The signal output uses an RF transformer with a bandwidth of 0.45-450MHz, with a signal amplitude of 950mVp-p at 10MHz output.
Onboard 25.000MHz active clock, configurable with internal/external clock sources.
Onboard output filter (see schematic diagram for filter parameters).
