Product information:

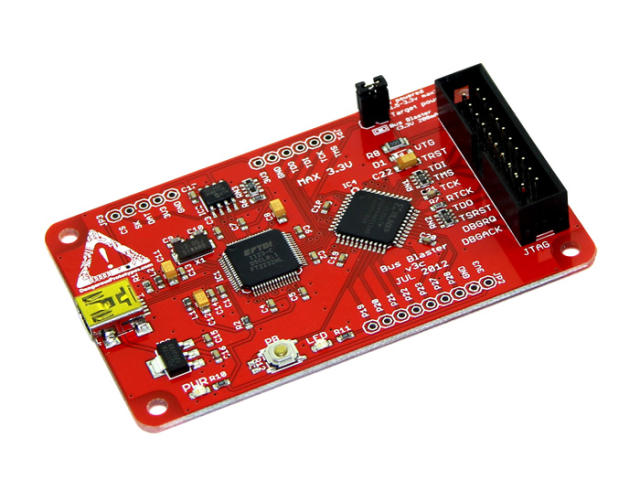

The Blaster V3c bus for MIPS is an affordable high-speed debugging adapter designed to support JTAG debugging for various MIPS processors. This version of Bus Blaster features a 14 pin target connector and interface cable, with buffering logic suitable for MIPS EJTAG. In other aspects, it is the same as the standard Bus Blaster V3c
For MIPS hardware and software debugging, it is recommended to use Bus Blaster together with OpenOCD JTAG programming and debugging software, which can be downloaded from SourceForge.
For software development, compilation, program building, and source code debugging using GDB, Codescape MIPS SDK Essentials can be downloaded for free from the Imagination Technologies website. Download Codescape SDK Essentials here.
Bus Blaster can be used with various other debugging, programming, and boundary scan testing software, so MIPS development projects can utilize abundant resources.
Product features:
Suitable for MIPS (EJTAG) with 14 pin connector
Adapter suitable for 14 pin to 12 pin and 6-pin connectors, compatible with Digilent Nexys 4 DDR and Wi Fi boards
Including Bus Blaster acrylic shell panel and nylon screws (assembly required)
High speed USB 2.0 based on FT2232H chip
Buffer interface suitable for 3.3V to 1.8V
Reconfigurable buffer compatible with multiple debugger types
Compatible with programmer settings such as' jtarkey 'and' KT link 'in OpenOCD, urJTAG, etc
Pre programmed JTAGkey compatible with buffer images for ships
Mini CPLD development board: self programming, additional CPLD pins to headers
Open Source (CC-BY-SA)
