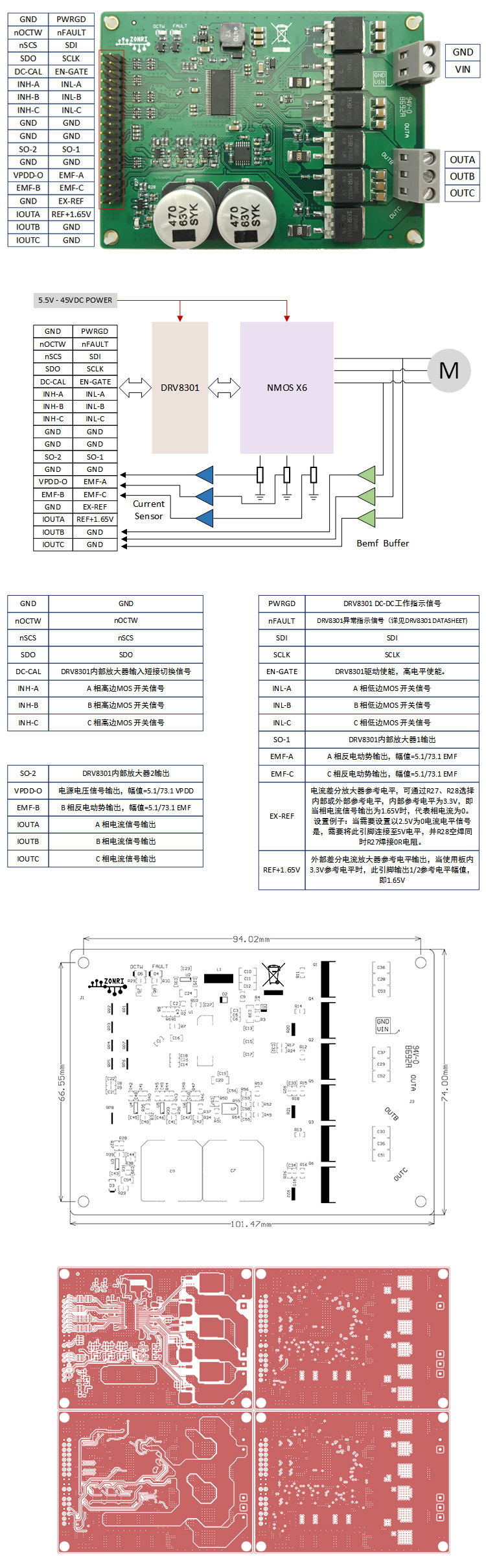

Parameters
Rated power input range: 5.5V-45Vdc, output rated driving current 15A (without installed heat sink at room temperature).
Onboard three-phase external current amplification circuit with a gain of 12.22 and a full amplitude current of ± 27A.
The onboard three-phase back electromotive force sampling circuit and power sampling circuit have a signal attenuation ratio of 5.1/73.1.
Optional three-phase differential current amplifier reference level, can be connected to 5V or other level systems.
Retain and have dual internal amplifier outputs for DRV8301.
Three external current differential amplifiers support ST FOC library applications.
Support the development of BLDC sensorless brushless motor drive applications.
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Question: Does this module support brushless and sensorless BLDC drivers?
Answer: The DRV8301 motor drive module has a three-phase back electromotive force BEMF output, which can be used for sampling commutation signals.

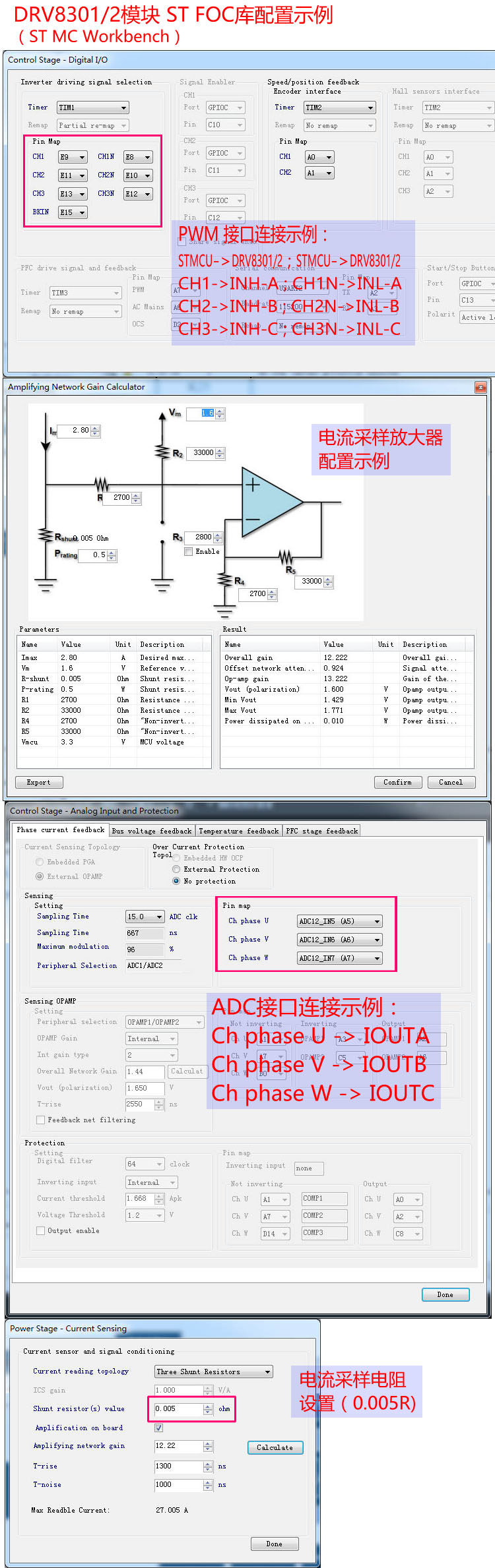

Question: Does it support ST FOC library?

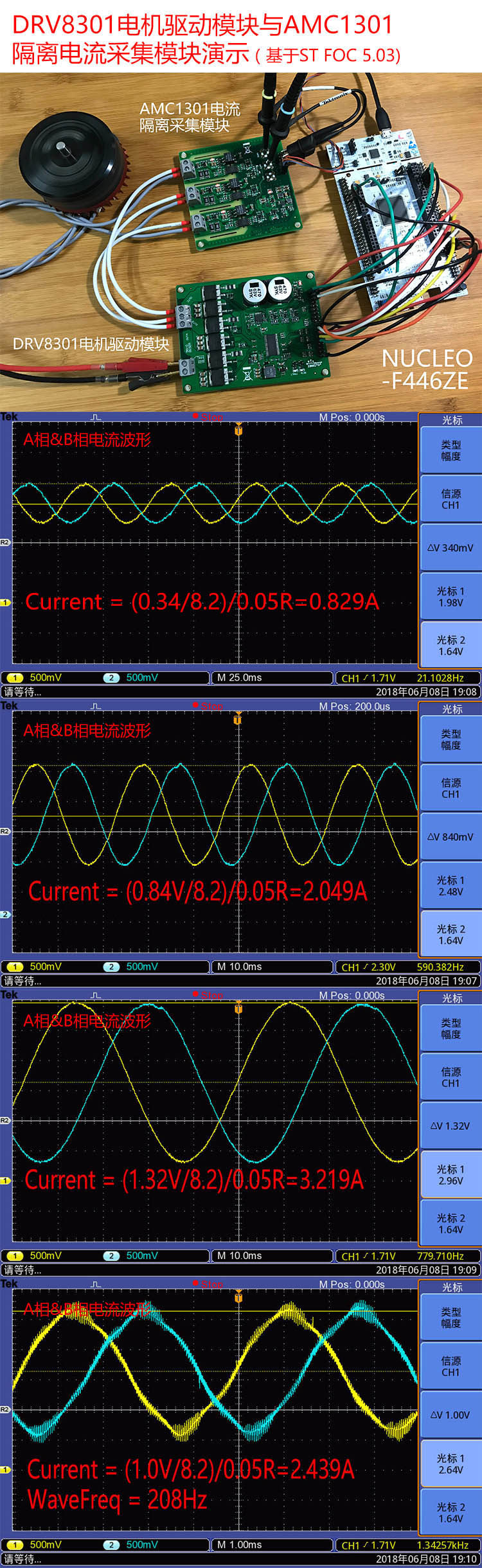

Answer: In addition to the two internal current amplifiers of the DRV8301 driver board, three external current amplification circuits are designed to support the ST FOC library's three resistor current sampling method.
