Description

Product information:

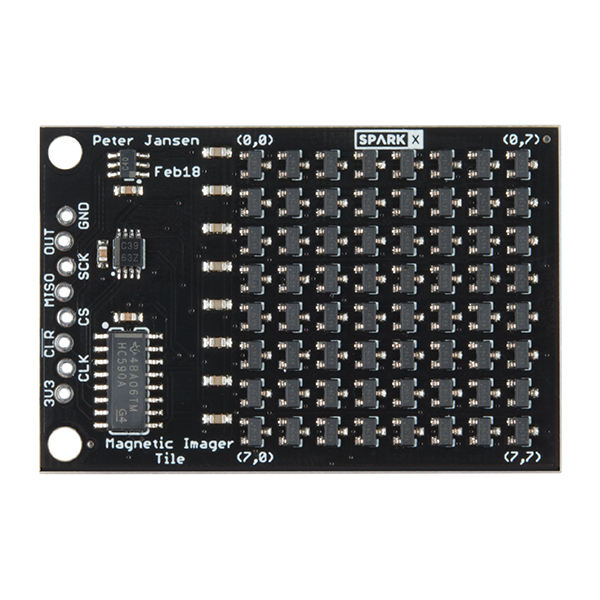

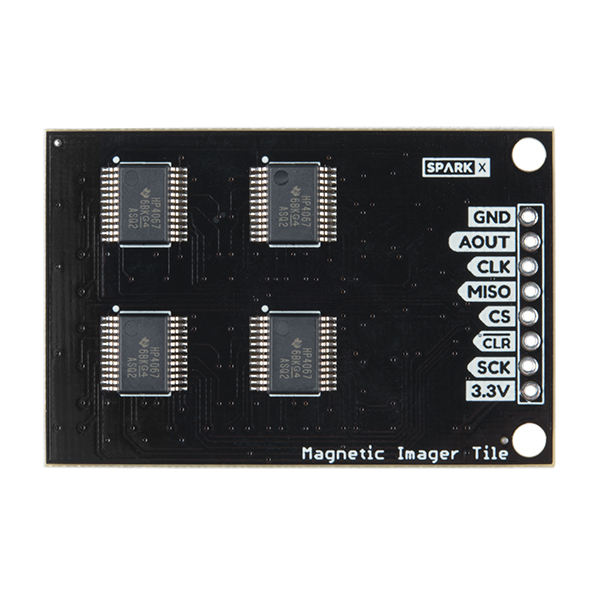

The magnetic imaging module uses 64 Hall effect sensor arrays to convert magnetic fields into visible spectra. As expected, now you can see the magnetic field in real time! The magnetic sensor used in the magnetic imaging module is one of the most sensitive sensors on the market, but you need to be within 1 to 2 centimeters of the magnetic imaging module to obtain good images.

Magnetic imaging magnets use the following components:
Magnetic Sensor(64 pixels):DRV5053VA -90mV/mT sensitivity
Analog to Digital Conversion:AD7680 16-bit 100kSPSWith a 16-bit ADC and a 3.3V range this is approximately 50mV per bit.
The Magnetic lmaging Tile is able to detect roughly +/- 0.5mT perbit.

Product features:

Powered with 3.3V to 5V

Uses approximately 150mA during sensing at 3.3V
Size:52x34mm

Boards can be tiled next to each other to increase field size witha one 'pixel'gap between boards.
