The sound quality of this amplifier board is quite clear, with a very comfortable and pleasant vocal sound. The output is also awesome, producing good effects when used with 2-4 speakers. It can be powered by a mobile phone charger or a computer USB port, which is very convenient. We recommend using a 5V 2A TYPE-C interface. The board material is very luxurious, consumes very little power, and generates little heat, making it suitable for long-term use.
Product Features:
Power supply voltage: DC5V (do not overvoltage, overvoltage will burn out the IC)
TYPE-C or external 2.54mm socket 5V input
Bluetooth: 5.0 SBC
Input method: Bluetooth 5.0//3.5MM stereo
Output power: 5W2 Ω 5V//3W4 Ω 5V//1.8W8 Ω 5V
Size: 52mmx49mmx21mm Width Depth Height

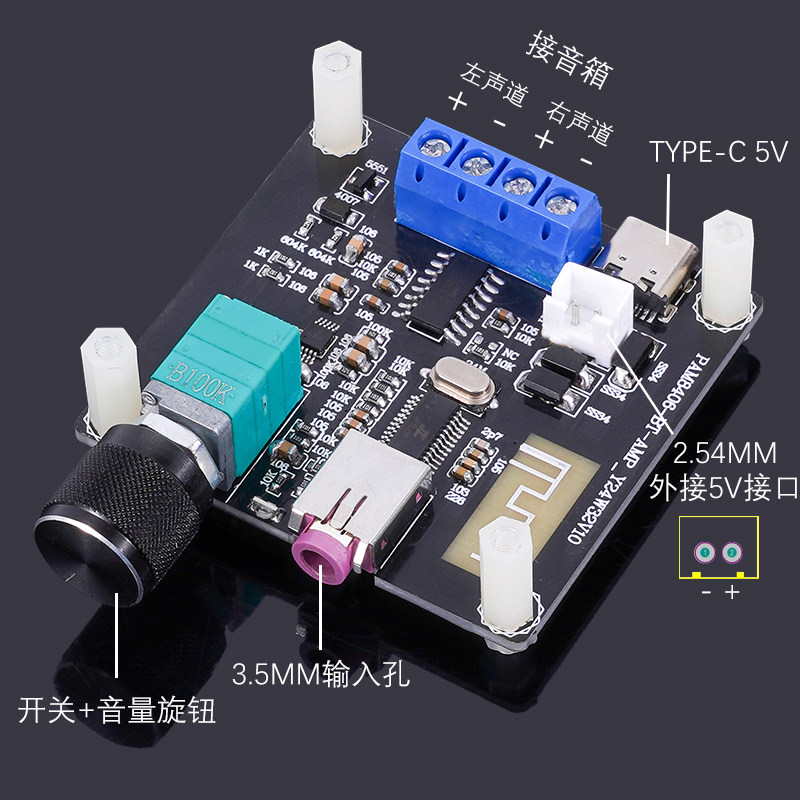

Materials: PAM8406 amplifier chip, high-end pure black ink double-layer circuit board, Jerry Bluetooth chip, sealed high-precision volume potentiometer.
Recommended output configuration：2-4 inch speakers
Performance:
Efficiency:>90%
Total harmonic distortion plus noise:<10%
Low static current
noise suppression
Protection: Short circuit, overheating
