What is PIC-EK?
PIC-EK is an old friend. It has been with us for 4 generations. Many of us made our first steps in embedded world with PIC-EK. Today it has thousands of users: students, hobbyists, enthusiasts and professionals. It is used in many schools and other educational institutions across the globe. We have sold them over 5000pcs in the world in the past 3 years. It provides a low-cost and easy-to-use platform with common modules to bring you into the colorful embedded world.PIC-EK has many common modules which allow you connect them to the microcontroller via wires by yourself. We believe that you will enjoy this free connection mode, because it will bring you the fun of creation.We now present you with the new version PIC-EK that brings so much more, and we hope that you will be thrilled with your new board, just as we are. PIC-EK is a powerful PIC Development Board for 370+ Microchip PIC MCUs in DIP packaging. It features over 18 essential modules necessary in development. Board comes with PIC16F877A by default and we provide over 1000 samples in C language based on PICC compiler for microcontrollers: PIC16F877A, PIC16F887, PIC16F74, PIC16F77, PIC16F914, PIC16F917, PIC18F452, PIC18F4520, PIC18F4620, PIC18F4550, PIC18F458 , PIC18F4580, PIC18F4585, PIC18F4680 and PIC18F4685 etc.In the future, we will write more samples for other PIC MCUs.Of course, we are not perfect and we asking ourselves what we can do to make such a board even better, and at the same time, we are looking forward to receiving your valuable suggestions.

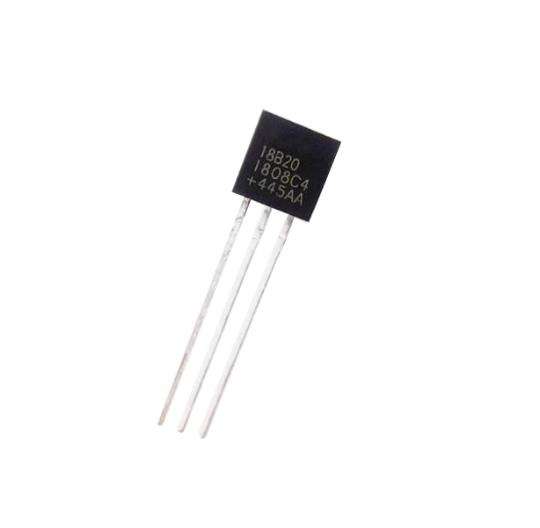

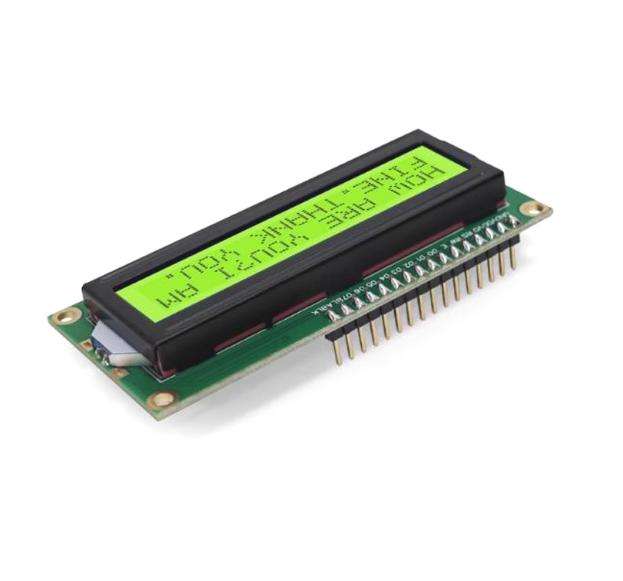

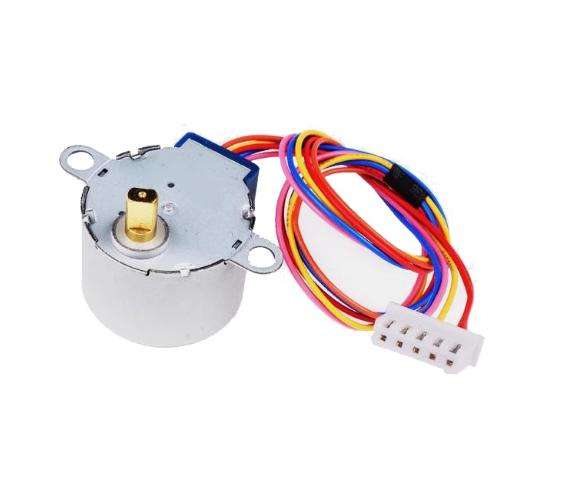

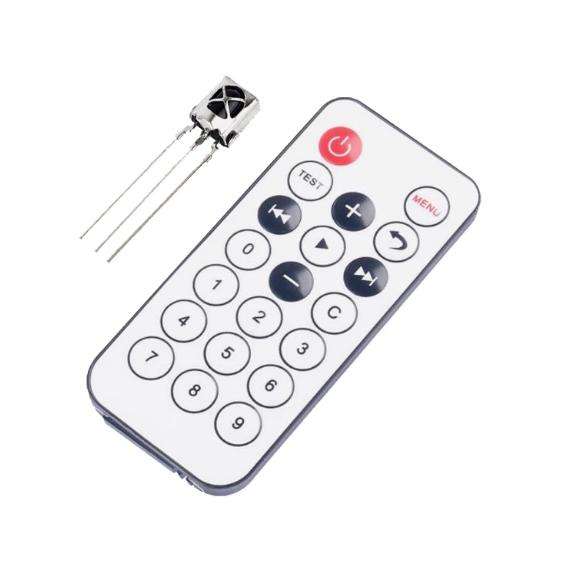

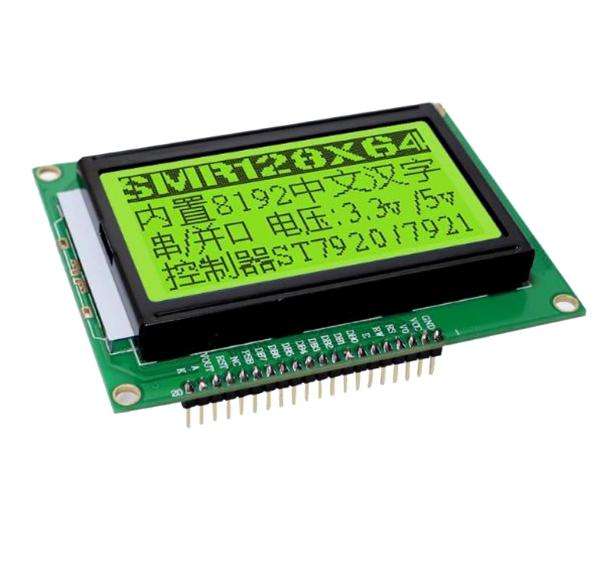

What’s on Board?
Supported Devices
PIC-EK currently supports over 500+ Microchip PIC microcontrollers in DIP8/14/18/20/28 /40 packaging, and the following shows the frequently used:
| MCUs Supported for the "10F2XX" MCU Socket: |
PIC10F200
(RA=GP) |
PIC10F202 (RA=GP) |
PIC10F204 (RA=GP) |
PIC10F206 (RA=GP) |
PIC10F220 (RA=GP) |
PIC10F222 (RA=GP) |
PIC10(L)F320 (RA=RA) |
PIC10(L)F322 (RA=RA) |
|
|
| MCUs Supported for the "DIP8" MCU Socket on PIC-EK development board: |
PIC12(L)C508
(RA=GP) |
PIC12(L)C509
(RA=GP) |
PIC12(L)C508A
(RA=GP) |
PIC12(L)C509A
(RA=GP) |
PIC12CR509A
(RA=GP) |
PIC12(L)CE518
(RA=GP) |
PIC12(L)CE519
(RA=GP) |
PIC12C671
(RA=GP) |
PIC12C672
(RA=GP) |
PIC12CE673
(RA=GP) |
PIC12CE674
(RA=GP) |
PIC12HV609
(RA=GP) |
PIC12HV615
(RA=GP) |
PIC12F508
(RA=GP) |
PIC12F509
(RA=GP) |
PIC12F510
(RA=GP) |
PIC12F609
(RA=GP) |
PIC12F615
(RA=GP) |
PIC12F617
(RA=GP) |
PIC12F629
(RA=GP) |
PIC12F635
(RA=GP) |
PIC12F675
(RA=GP) |
PIC12F683
(RA=GP) |
PIC12F519
(RA=RB) |
|
|
|
|
|
|
| PIC12F752 |
PIC12HV752 |
PIC12(L)F1501 |
PIC12(L)F1552 |
PIC16(L)F15313 |
PIC12(L)F1571 |
PIC12(L)F1572 |
PIC12(L)F1612 |
PIC12(L)F1822 |
PIC12(L)F1840 |
| PIC16(L)F18313 |
|
|
|
|
|
|
|
|
|
| MCUs Supported for the "DIP14" MCU Socket on PIC-EK development board: |
| PIC16(L)F1454 |
PIC16(L)F1455 |
PIC16(L)F1503 |
PIC16(L)F1554 |
PIC16(L)F1574 |
PIC16(L)F1575 |
PIC16(L)F15323 |
PIC16(L)F15324 |
PIC16(L)F15325 |
PIC16(L)F1613 |
| PIC16(L)F1614 |
PIC16(L)F1615 |
PIC16(L)F1764 |
PIC16(L)F1765 |
PIC16(L)F1703 |
PIC16(L)F1704 |
PIC16(L)F1705 |
PIC16(L)F1823 |
PIC16(L)F1824 |
PIC16(L)F1825 |
| PIC16(L)F18424 |
PIC16(L)F18425 |
PIC16(L)F18426 |
PIC16(L)F18323 |
PIC16(L)F18324 |
PIC16(L)F18325 |
PIC16(L)F18326 |
PIC16F610 |
PIC16HV610 |
PIC16F616 |
| PIC16HV616 |
PIC16F630 |
PIC16F636 |
PIC16F676 |
PIC16F684 |
PIC16F688 |
PIC16F753 |
PIC16HV753 |
|
|
| MCUs Supported for the "DIP18" MCU Socket on PIC-EK development board: |
| PIC16C54 |
PIC16C54A |
PIC16C54B |
PIC16C54C |
PIC16C56 |
PIC16C56A |
PIC16C58 |
PIC16C58B |
PIC16C71 |
PIC16C554 |
| PIC16C558 |
PIC16C620 |
PIC16C620A |
PIC16C621 |
PIC16C621A |
PIC16C622 |
PIC16C622A |
PIC16C710 |
PIC16C711 |
PIC16C712 |
| PIC16C715 |
PIC16C716 |
PIC16CR54 |
PIC16CR56 |
PIC16CR58 |
PIC16CR58B |
PIC16CR54A |
PIC16CR83 |
PIC16CR84 |
PIC16CR620A |
| PIC16CE623 |
PIC16CE624 |
PIC16CE625 |
PIC16HV540 |
PIC16F54 |
PIC16F83 |
PIC16F84 |
PIC16F84A |
PIC16F87 |
PIC16F88 |
| PIC16F627 |
PIC16F627A |
PIC16F628 |
PIC16F628A |
PIC16F648A |
PIC16F818 |
PIC16F819 |
PIC16(L)F1826 |
PIC16(L)F1827 |
PIC16(L)F1847 |
| MCUs Supported for the "DIP20" MCU Socket on PIC-EK development board: |
| PIC18(L)F13K22 |
PIC18(L)F14K22 |
PIC18(L)F13K50 |
PIC18(L)F14K50 |
PIC16F527 |
PIC16F631 |
PIC16F677 |
PIC16F685 |
PIC16F687 |
PIC16F689 |
| PIC16F785 |
PIC16HV785 |
PIC16(L)F720 |
PIC16(L)F721 |
PIC16(L)F1459 |
PIC16(L)F1507 |
PIC16(L)F1508 |
PIC16(L)F1509 |
PIC16(L)F1559 |
PIC16(L)F1578 |
| PIC16(L)F1579 |
PIC16(L)F1618 |
PIC16(L)F1619 |
PIC16(L)F1707 |
PIC16(L)F1708 |
PIC16(L)F1709 |
PIC16(L)F1768 |
PIC16(L)F1769 |
PIC16(L)F1828 |
PIC16(L)F1829 |
| PIC16(L)F15344 |
PIC16(L)F15345 |
PIC16(L)F18344 |
PIC16(L)F18345 |
PIC16(L)F18346 |
PIC16(L)F18444 |
PIC16(L)F18445 |
|
|
|
| MCUs Supported for the "DIP28" MCU Socket on PIC-EK development board: |
| PIC16CR62 |
PIC16CR63 |
PIC16CR72 |
PIC16C62 |
PIC16C62A |
PIC16C62B |
PIC16C63 |
PIC16C63A |
PIC16C66 |
PIC16C72 |
| PIC16C72A |
PIC16C73A |
PIC16C73B |
PIC16C76 |
PIC18C242 |
PIC18C252 |
PIC16C641 |
PIC16C642 |
PIC16C745 |
PIC16C745 |
| PIC16C773 |
PIC18F24J10 |
PIC18F25J10 |
PIC18F24J11 |
PIC18F25J11 |
PIC18F26J11 |
PIC18F26J13 |
PIC18F27J13 |
PIC18F24J50 |
PIC18F25J50 |
| PIC18F26J50 |
PIC18F26J53 |
PIC18F27J53 |
PIC18(L)F23K20 |
PIC18(L)F24K20 |
PIC18(L)F25K20 |
PIC18(L)F26K20 |
PIC18(L)F23K22 |
PIC18(L)F24K22 |
PIC18(L)F25K22 |
| PIC18(L)F26K22 |
PIC18(L)F24K40 |
PIC18(L)F25K40 |
PIC18(L)F26K40 |
PIC18(L)F27K40 |
PIC18(L)F24K42 |
PIC18(L)F25K42 |
PIC18(L)F26K42 |
PIC18(L)F27K42 |
PIC18(L)F24K50 |
| PIC18(L)F25K50 |
PIC18(L)F25K80 |
PIC18(L)F26K80 |
PIC18F24Q10 |
PIC18F25Q10 |
PIC18F26Q10 |
PIC18F27Q10 |
PIC16F72 |
PIC16F73 |
PIC16F76 |
| PIC16F570 |
PIC16F722(A) |
PIC16F723(A) |
PIC16F726(A) |
PIC16F737 |
PIC16F767 |
PIC16F870 |
PIC16F872 |
PIC16F873 |
PIC16F873A |
| PIC16F876 |
PIC16F876A |
PIC16F882 |
PIC16F883 |
PIC16F886 |
PIC16F913 |
PIC16F916 |
PIC16(L)F1512 |
PIC16(L)F1513 |
PIC16(L)F1516 |
| PIC16(L)F1518 |
PIC16(L)F1566 |
PIC16(L)F1782 |
PIC16(L)F1783 |
PIC16(L)F1786 |
PIC16(L)F1713 |
PIC16(L)F1716 |
PIC16(L)F1718 |
PIC16(L)F1773 |
PIC16(L)F1776 |
| PIC16(L)F1778 |
PIC16(L)F1902 |
PIC16(L)F1903 |
PIC16(L)F1906 |
PIC16(L)F1933 |
PIC16(L)F1936 |
PIC16(L)F1938 |
PIC16(L)F18455 |
PIC16(L)F18456 |
PIC16(L)F15354 |
| PIC16(L)F15355 |
PIC16(L)F15356 |
PIC16(L)F18854 |
PIC16(L)F18855 |
PIC16(L)F18856 |
PIC16(L)F18857 |
PIC16(L)F19155 |
PIC16(L)F19156 |
|
|
| PIC18F242 |
PIC18F252 |
PIC18F248 |
PIC18F258 |
PIC18F2220 |
PIC18F2221 |
PIC18F2320 |
PIC18F2321 |
PIC18F2331 |
PIC18F2431 |
| PIC18F2410 |
PIC18F2420 |
PIC18F2423 |
PIC18F2423 |
PIC18F2455 |
PIC18F2480 |
PIC18F2439 |
PIC18F2450 |
PIC18F2458 |
PIC18F2510 |
| PIC18F2515 |
PIC18F2520 |
PIC18F2523 |
PIC18F2525 |
PIC18F2539 |
PIC18F2550 |
PIC18F2553 |
PIC18F2580 |
PIC18F2585 |
PIC18F2610 |
| PIC18F2620 |
PIC18F2680 |
PIC18F2682 |
PIC18F2685 |
|
|
|
|
|
|
| MCUs Supported for the "DIP40" MCU Socket on PIC-EK development board: |
| PIC16CR64 |
PIC16CR65 |
PIC16C64 |
PIC16C64A |
PIC16C65 |
PIC16C65A |
PIC16C65B |
PIC16C67 |
PIC16C74 |
PIC16C74A |
| PIC16C74B |
PIC16C77 |
PIC18C442 |
PIC18C452 |
PIC16C661 |
PIC16C662 |
PIC16C765 |
PIC16C774 |
PIC16(L)F1517 |
PIC16(L)F1519 |
| PIC16(L)F1567 |
PIC16(L)F1717 |
PIC16(L)F1719 |
PIC16(L)F1777 |
PIC16(L)F1779 |
PIC16(L)F1784 |
PIC16(L)F1787 |
PIC16(L)F1789 |
PIC16(L)F1904 |
PIC16(L)F1907 |
| PIC16(L)F1934 |
PIC16(L)F1937 |
PIC16(L)F1939 |
PIC16(L)F15375 |
PIC16(L)F15376 |
PIC16(L)F18875 |
PIC16(L)F18876 |
PIC16(L)F18877 |
PIC16(L)F19175 |
PIC16(L)F19176 |
| PIC16F74 |
PIC16F77 |
PIC16F871 |
PIC16F874A |
PIC16F874 |
PIC16F877 |
PIC16F877A |
PIC16F884 |
PIC16F887 |
PIC16F914 |
| PIC16F917 |
PIC16(L)F707 |
PIC16(L)F724 |
PIC16(L)F727 |
PIC16F747 |
PIC16F777 |
|
|
|
|
| PIC18F45J10 |
PIC18F44J10 |
PIC18(L)F43K20 |
PIC18(L)F44K20 |
PIC18(L)F45K20 |
PIC18(L)F46K20 |
PIC18(L)F43K22 |
PIC18(L)F44K22 |
PIC18(L)F45K22 |
PIC18(L)F46K22 |
| PIC18(L)F45K40 |
PIC18(L)F46K40 |
PIC18(L)F47K40 |
PIC18(L)F46K42 |
PIC18(L)F45K42 |
PIC18(L)F47K42 |
PIC18(L)F45K50 |
PIC18(L)F45K80 |
PIC18(L)F46K80 |
PIC18F45Q10 |
| PIC18F46Q10 |
PIC18F47Q10 |
PIC18F452 |
PIC18F442 |
PIC18F448 |
PIC18F458 |
PIC18F4410 |
PIC18F4220 |
PIC18F4221 |
PIC18F4320 |
| PIC18F4321 |
PIC18F4331 |
PIC18F4420 |
PIC18F4423 |
PIC18F4431 |
PIC18F4439 |
PIC18F4450 |
PIC18F4455 |
PIC18F4458 |
PIC18F4480 |
| PIC18F4510 |
PIC18F4515 |
PIC18F4520 |
PIC18F4523 |
PIC18F4525 |
PIC18F4539 |
PIC18F4550 |
PIC18F4553 |
PIC18F4580 |
PIC18F4585 |
| PIC18F4610 |
PIC18F4620 |
PIC18F4685 |
PIC18F4680 |
PIC18F4682 |
PIC18F4685 |
|
|
|
|
Note
1: Some supported microcontroller models may be omitted, and the actual situation shall prevail.
2. In addition to supporting 5V PIC microcontrollers, PIC-EK also supports 3.3V PIC microcontrollers with an "L". Therefore, all PIC microcontrollers with an "L" that are not listed in this table but have a compatible pin layout are supported. |
Power Supply Requirement

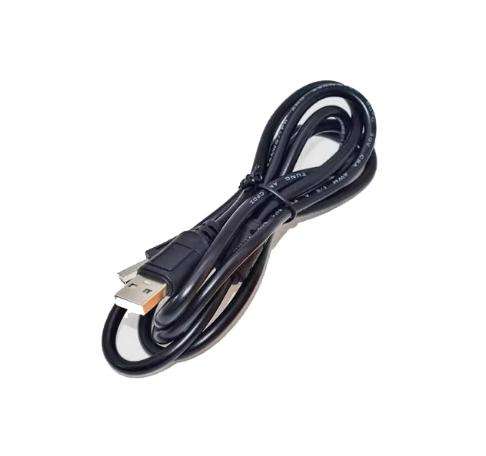

PIC-EK development board supports both 3.3V and 5V power supply on a single board.This feature enables you to use wide range of peripheral boards. Power supply: via 2P Screw Terminal (EX-PWR) (+7-12V DC) or via USB cable (5V DC)
Power capacity: up to 500mA with USB, and up to 600 mA with external power supply.
Programmer/Debugger Requirement

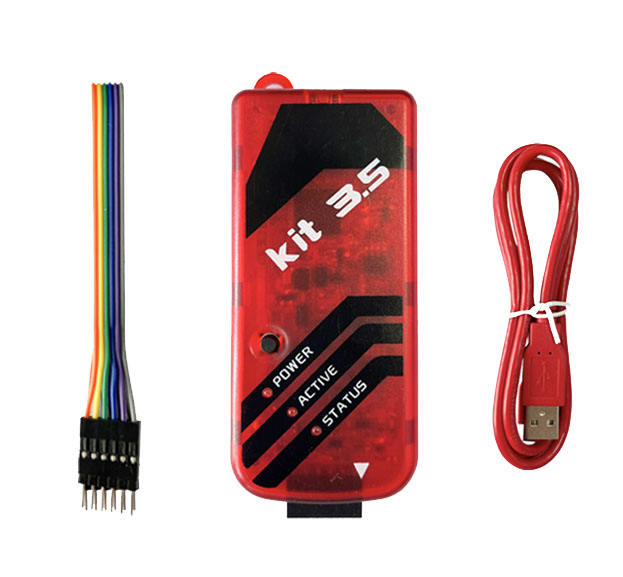

PIC-EK does not contain any programmer/debugger. An external PIC programmer/debugger is required to download code to the PIC MCUs. It supports many programmer/debugger like PICKIT2，PICKIT3 or ICD2 etc. Some third-party PIC programmer/debugger are also supported well, like MCD2,mikroICD,QL2006,K128 and K149 etc.
Package Contains
This product should include the following components:
PIC-EK(Comes with the microcontroller as the title says),-----------------------------1 pcs;
Dupont 1P-1P(F) DIY Cable,----------------------------------------------------------------------10pcs
Dupont 8P-8P(F) DIY Cable,------------------------------------------------------------------------4pcs
