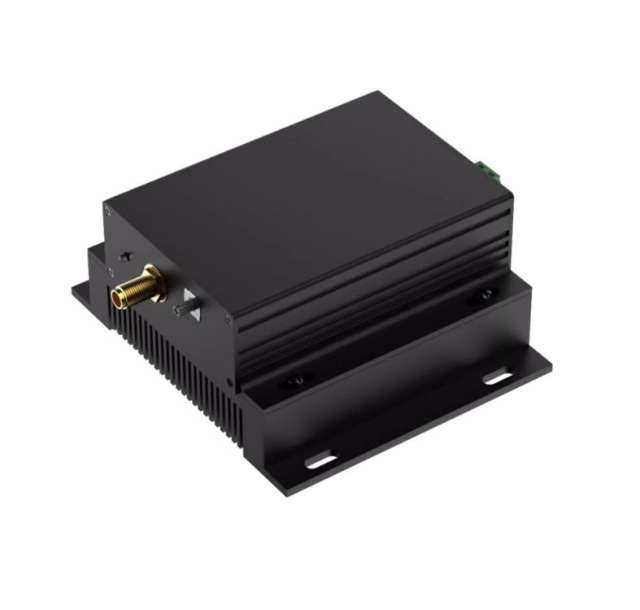

Overview
SA628F39 is an 8W high-power, full-duplex wireless data and Audio module. Users can read and configure the module's internal parameters through a USB serial interface, along with a user-friendly PC interface, and control its transmission and reception functions. Data transmission and reception can be directly performed through the serial port, enabling full-duplex wireless data communication with mesh functionality.
SA628F39 features multiple safety mechanisms, including reverse polarity protection, overcurrent and overvoltage protection, and anti-freeze protection, ensuring stable operation in various complex environments. Users only need to connect the power supply, speaker, and microphone to easily achieve remote wireless digital voice transmission. The module is simple to operate and quick to deploy.
SA628F39 supports multi-channel concurrent reception and Mesh self-organizing network functionality. It also supports over-the-air (OTA) upgrades or serial upgrades.
SA628F39 module is designed with efficient heat dissipation and a thermally conductive base to ensure stability and reliability during high-power operation.SA628F39 is manufactured and tested using lead-free processes and complies with RoHS and Reach standards.
Parameters
|
Parameters
|
Condition
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Power Supply
|
|
9
|
12
|
25
|
V
|
|
Working temperature
|
|
-40
|
25
|
70
|
℃
|
|
Current consumption
|
|
RX Current
|
@No audio output, 12V
|
|
70
|
|
mA
|
|
TX current(High power)
|
@12V 39dBm, 2-person communication
|
|
1200
|
|
mA
|
|
@12V 39dBm, 8-person communication
|
|
370 |
|
mA |
|
RF Parameters
|
|
Operating frequency
|
UHF
|
400
|
|
470
|
MHz
|
|
Default shipping frequency
|
UHF ( 1MHz interval)
|
440.125
|
|
455.125
|
MHz
|
|
Transmit power
|
@12v,440MHz
|
38
|
39
|
40
|
dBm
|
|
Adjustable transmit power range
|
@12v,440MHz
|
30
|
|
40
|
dBm
|
|
Bandwidth（BW)
|
|
|
500
|
|
KHz
|
|
Audio parameters
|
|
Modulation sensitivity
|
|
|
10
|
200
|
mV
|
|
Receive signal-to-noise ratio(SNR)
|
|
|
80
|
|
dB
|
|
Frequency response
|
|
60
|
|
3800
|
Hz
|
|
Voice output（line out)
|
Load 16 Ω
|
|
|
40
|
mW
|
|
Voice output power（SPK+,SPK-)
|
Load 8 Ω
|
|
|
2000
|
mW
|
|
Delay parameters
|
2channels
|
|
80
|
|
ms
|
|
3channels
|
|
120
|
|
ms
|
|
4channels
|
|
160
|
|
ms
|
|
6channels
|
|
240
|
|
ms
|
|
8channels
|
|
320
|
|
ms
|
Features
-
Frequency Band UHF 400-480MHz
-
USB Interface
-
Echo cancellation function
-
ESD protection and watchdog
-
Line In + Mic input
-
Line Out + SPK dual output
-
Mesh Network, Concurrent reception
-
OTA &Serial upgrade
-
5-level VoC adjust
-
8-Channels Full-Duplex Data/voice Communication
-
Professional heat dissipation design, overall system cooling
-
8km transmission distance in the open area
Applications
-
Fire emergency communication
-
Metro,Tunnel communication
-
Riding intercom system
-
Building and residential security system
-
High-quality full duplex walkie talkie
-
Security intercom system for special scenarios
-
Special job assignment walkie talkie

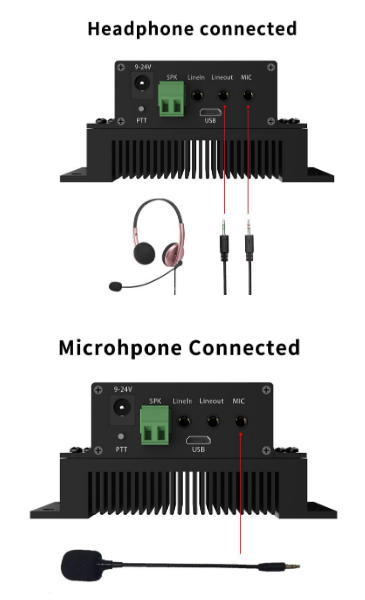

Typical Application

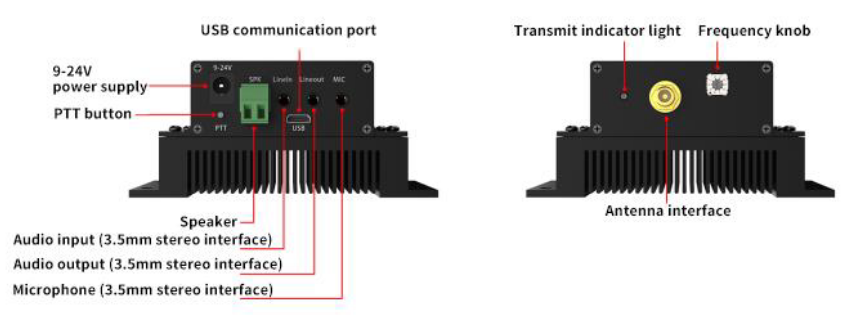

Module Labeling

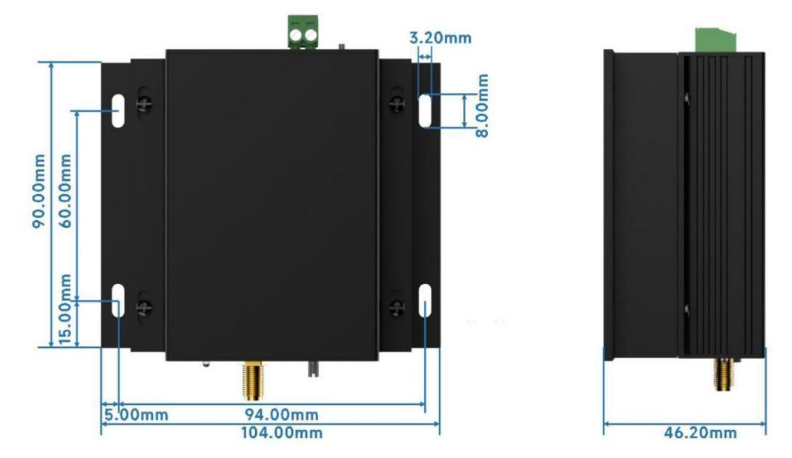

Mechanism Dimension
