1、 Introduction

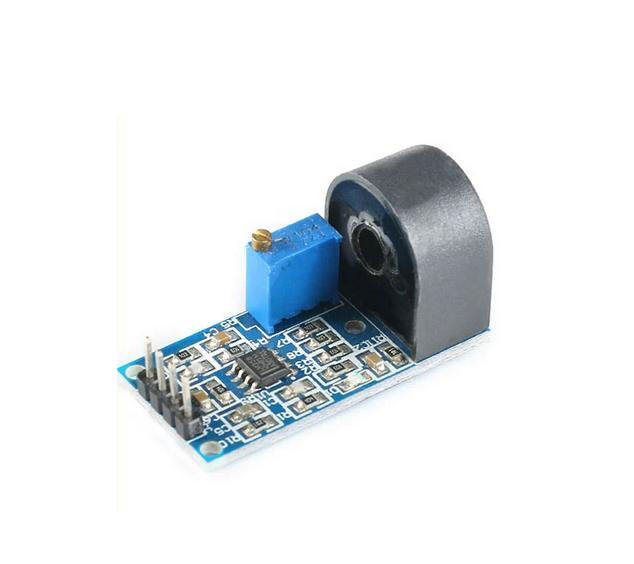

The module is equipped with ZMCT103C series small high-precision current transformers and high-precision operational amplifier circuits, which perform precise sampling and appropriate compensation of signals. Convenient for signal acquisition of AC power within 5A. The corresponding output analog AC signal can be adjusted, and the required output voltage can be adjusted according to the potentiometer (adjusting the amplification ratio, amplification range 0-100 times), but the maximum voltage at the output terminal (OUT) will not exceed 1/2VCC.
2、 Module parameters
Model:ZMCT103C
Rated input current: 5A
Rated output current: 5mA
Transformation ratio: 1000:1
Phase difference: less than or equal to 20 '(100 Ω)
Linear range: 0-10A (100 Ω)
Linearity: 0.2%
Precision grade: 0.2 grade
Isolation withstand voltage: 3000V
Working temperature: -40 ℃~70 ℃
Sealing material: epoxy resin
Module power supply voltage: 5-30VDC
