The Luckfox Pico RV1103 series includes five variants: Luckfox Pico, Luckfox Pico Mini A/B, Luckfox Pico Plus, and Luckfox WebBee.
At its core, the RV1103 is a high-integration IPC vision SoC designed for AI applications. Based on a single-core ARM Cortex-A7 32-bit architecture, it integrates NEON and FPU, and features an NPU supporting INT4/INT8/INT16 mixed-precision operations with up to 0.5 TOPS of performance.
The RV1103 is equipped with a new hardware-level ISP and multiple image processing accelerators, including HDR, 3A, LSC, 2D/3D noise reduction, sharpening, dehazing, and gamma correction. It also integrates 16-bit DDR2 DRAM, audio codec, MAC PHY, and power-on reset (POR), delivering optimized system resources alongside strong performance.
The development boards provide a rich set of interfaces such as GPIO, UART, SPI, I2C, and USB, making them suitable for rapid prototyping and debugging. The series supports both Buildroot and Ubuntu 22.04, offering flexibility for lightweight or general-purpose development environments.
Luckfox also provides full hardware schematics, software development kits (SDKs), and documentation covering everything from low-level hardware to application development. Whether for DIY enthusiasts or professional engineers, the series can be efficiently applied to intelligent vision, edge computing, and a wide range of AI scenarios.
| |

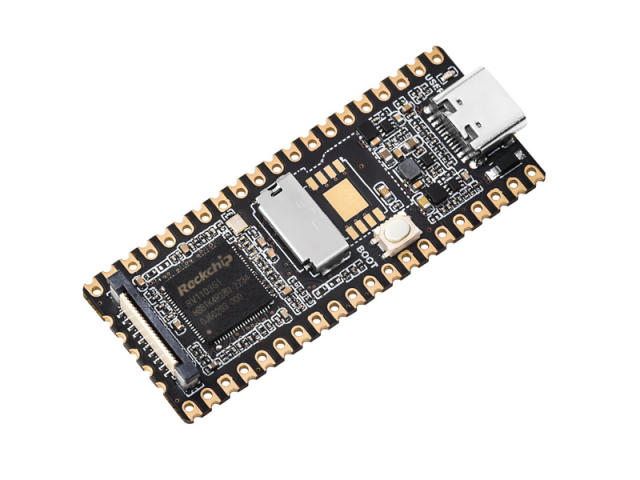

Luckfox Pico |

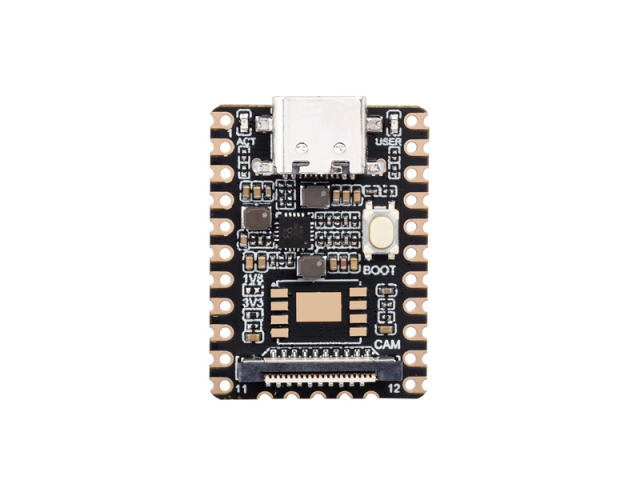

Luckfox Pico Mini A |

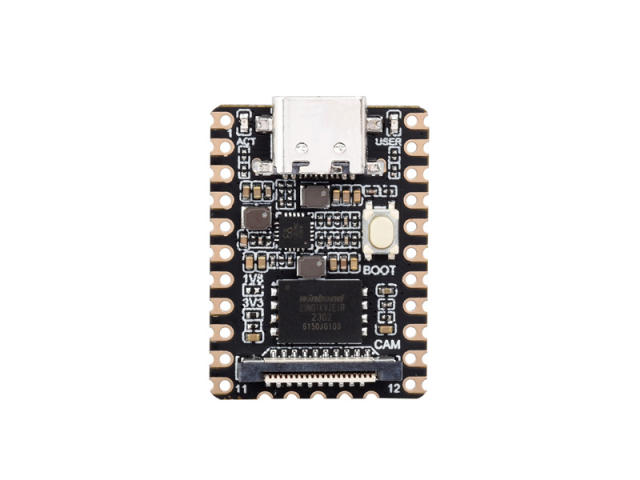

Luckfox Pico Mini B |
Luckfox Pico Plus |

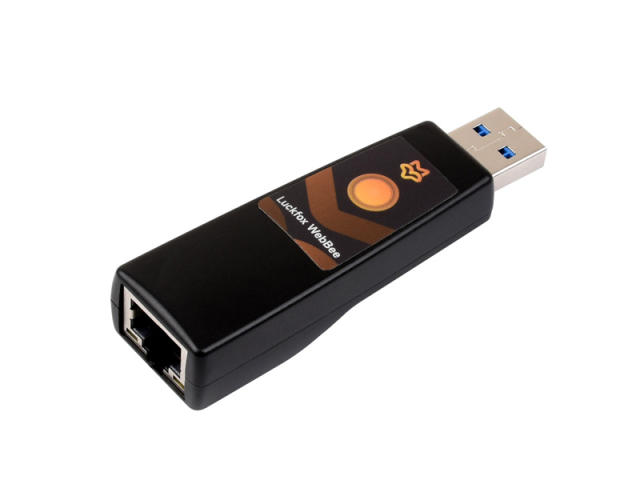

Luckfox WebBee |
| |
|
|
|
|
|
| SoC |
RV1103 |
| CPU |
Cortex-A7 1.2GHz |
| NPU |
0.5 TOPS, supports INT4, INT8, INT16 |
| VEPU |
Supports H.264/H.265 video encoding |
| ISP |
Max input 4MP @ 30fps |
| Memory |
64MB DDR2 |
| Ethernet |
/ |
10/100M Ethernet controller with embedded PHY |
| Camera Interface |
1 × MIPI CSI 2-lane |
/ |
| USB |
1 × USB 2.0 Host/Device |
| Storage Expansion |
1 × MicroSD card slot |
| GPIO |
24 × GPIO |
17 × GPIO |
25 × GPIO |
/ |
| Default Storage |
MicroSD |
SPI NAND Flash (128MB) |
